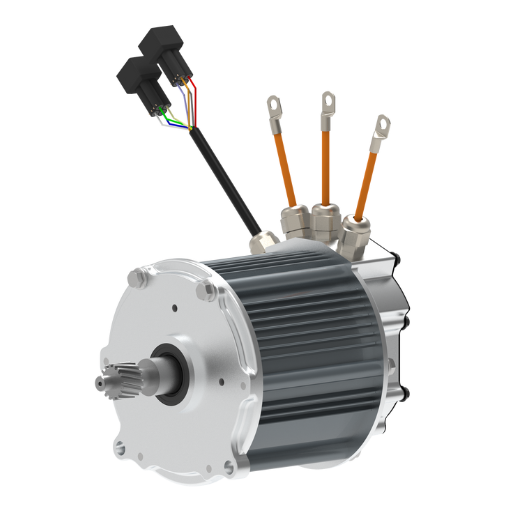

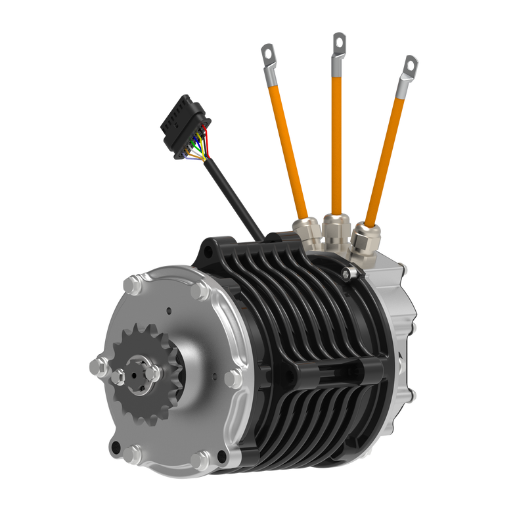

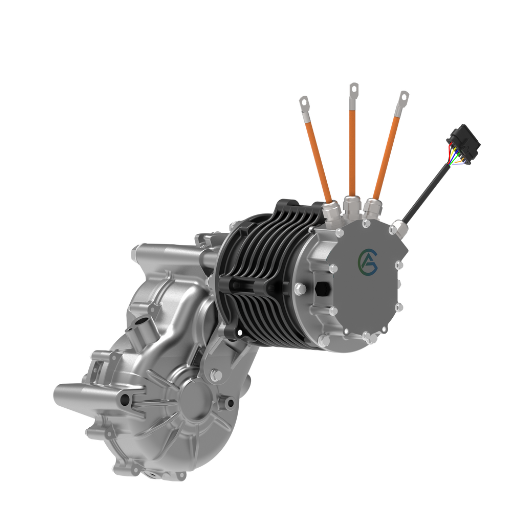

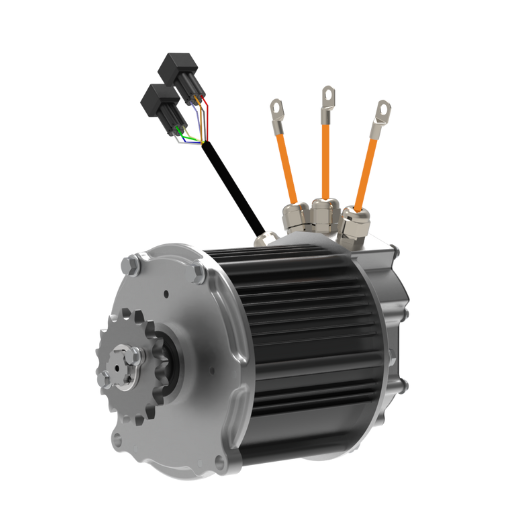

Airgap’s HSRM120D platform is designed to address the needs of light electric mobility applications with market leading performance, reliability and compactness.

Benefits

  • UNIQUE REUSABLE magnet design combined with HREE (Dy, Tr) free magnets ensures highest levels of sustainability.
  • Extended maximum operating speeds to eliminate manual gear changing.
  • Wide contours of higher efficiencies to enhance range.
  • Completely sealed and naturally cooled.
  • Voltage agnostic.

Products

Applications

Specifications

Peak Power

4kW | 8kW

Peak Torque

25Nm | 40Nm

Max. Speed

7200RPM

Peak Efficiency

94%

Packaging

∅145×150 mm | ∅145×180 mm

Weight

6.5KG | 9.5KG
